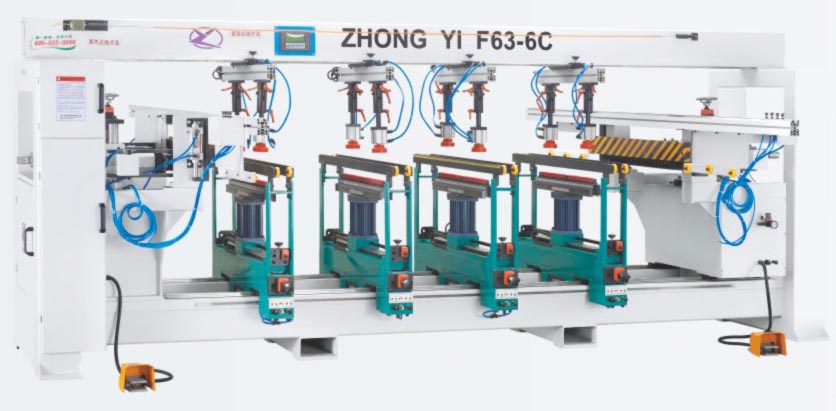

F63-6C 排鉆機(jī)

Features

1. Cylinder positioning .

2. Driller magazine automatically 90? turn over.

3. Touch screen control.

4. Efficiency and easily operation.

Technical Specs

◎Power source:380V/50Hz/3HP+N

◎Air pressure:0.6-0.8Mpa

◎Panel length:250-2500mm

◎Panel thickness:10-60mm

◎Panel width:150-1800mm

◎Driller magazine: 4 vertical+2 horizontal

◎Driller bits: 6x21=126 pcs

◎Driller bits distance:32mm

◎Panel positioning feed in/out direction:8 movable cylinders

◎Drilling speed:3000r/min.

◎Drilling depth:60mm

◎Max. Drilling diameter:15mm

◎Total power:9KW

◎Machine size:4600x1200x1680mm

◎Machine weight:1800kg
